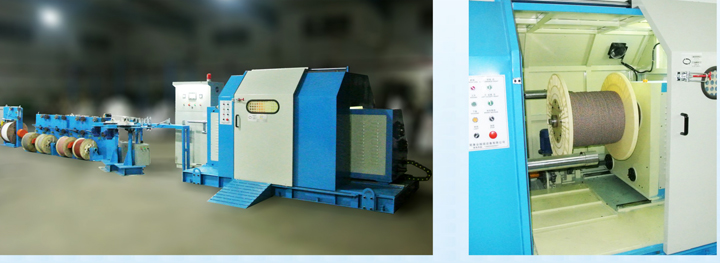

630-1250悬臂单绞机 cantilever single twisting machine
| cantilever type cable single stranding machine | ||||
| technical parameters | ||||
| machine type | 630 | 800 | 1000 | 1250 |
| single wire diameter | ø0.6-3.0mm | ø0.6-4.0mm | ø1.0-5.0mm | ø1.0-5.0mm |
| max stranding wire diameter | ø15mm | ø20mm | ø25mm | ø30mm |
| stranding pitch | 10-180mm | 20-250mm | 30-350mm | 30-400mm |
| pay-off reel specification | ø400-500mm | ø400-630mm | ||
| take-off reel specification | ø630 | ø800 | ø1000 | ø1250 |
| rotation speed | 1000rpm/min | 800rpm/min | 600rpm/min | 550rpm/min |
| shaft lifting | electric hydraulic lifting | |||
| take-up tension | pneumatic tension(adjustable) | |||
| stranding direction | SZ left and right free option | |||
| traverse type | take-up by self-running of wire drum,reciprocal traverse | |||
| wrapping way | center wind-wrapping or side straight-wrapping | |||
